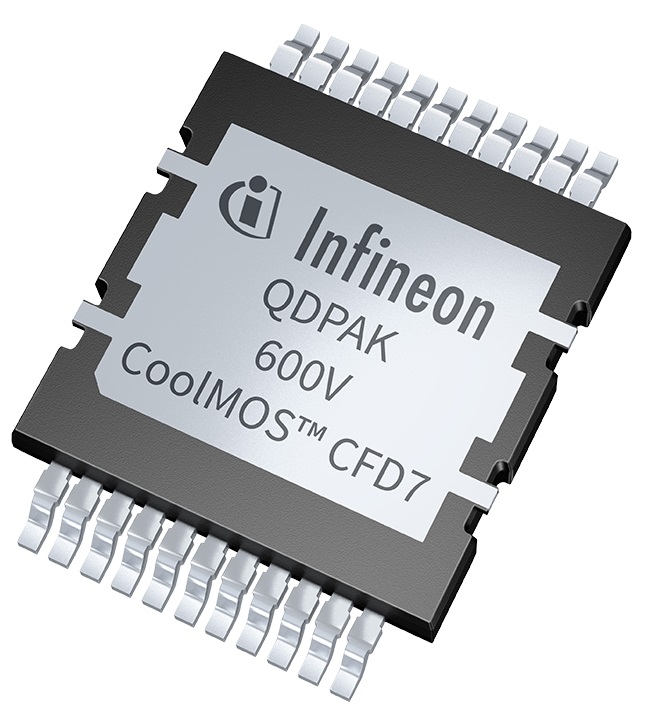

Infineon IPDQ60R045CFD7XTMA1

The 600 V CoolMOS™ CFD7 is Infineon’s latest high voltage superjunction MOSFET technology with integrated fast body diode, completing the CoolMOS™ 7 series. CoolMOS™ CFD7 comes with reduced gate charge (Qg), improved turn-off behavior and a reverse recovery charge (Qrr) of up to 69% lower compared to the competition, as well as the lowest reverse recovery time (trr) in the market
Built by Infineon

The CAD models below were provided for download to Ultra Librarian by Infineon. All CAD formats may not be available.

Symbol

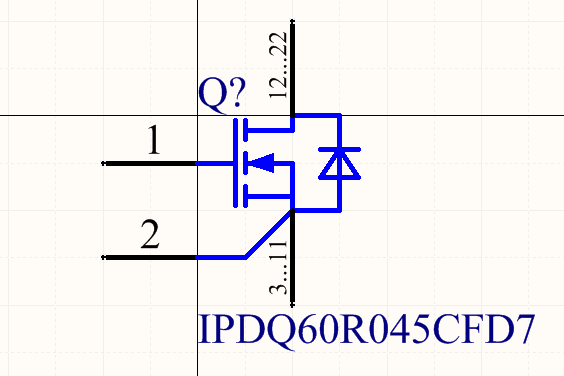

Symbol preview for IPDQ60R045CFD7XTMA1

Footprint

Footprint preview for IPDQ60R045CFD7XTMA1

3D Model

Additional Info
Datasheets
Pricing & Availability
Tech Specs
Simulation Models
