Infineon IPT60R037CM8XTMA1

The 600 V CoolMOS™ 8 SJ MOSFETs series is the successor to the 600 V CoolMOS™ 7 MOSFET family including P7, S7, CFD7, C7 (G7) and PFD7.It comes with reduced gate charge (Qg) of 20% over CFD7, reduction in turn-off losses (Eoss) is further improved by 12% over CFD7, reverse recovery charge (Qrr) is 3% lower compared to the CFD7, as well as the lowest reverse recovery time (trr) in the market.
Built by Infineon

The CAD models below were provided for download to Ultra Librarian by Infineon. All CAD formats may not be available.

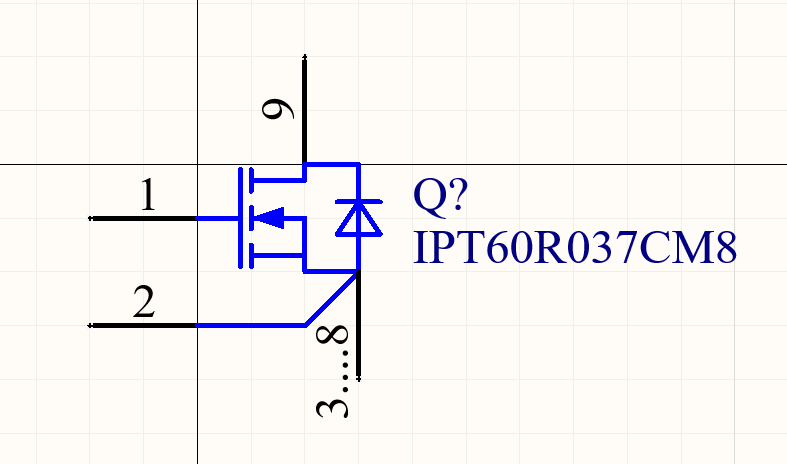

Symbol

No Preview Available

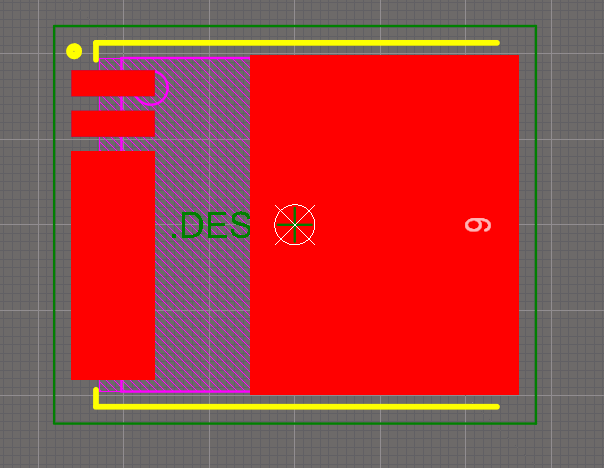

Footprint

No Preview Available

3D Model

No 3D Model Available

Additional Info
Datasheets
Pricing & Availability
Tech Specs
