Infineon BTM9010EPXUMA1

The MOTIX™ Full Bridge IC provides a cost optimized solution for easy design in. The supply voltage of the device is at 7 V to 18 V. It suits automotive applications with limitation of minimum 10A and covers PWM frequency of up to 20 kHz. BTM9010EP stands out due to its small (4,9 x 6,0mm) package with exposed pad leading to enhanced thermal conductivity. It features current sense for both, high side and low side.
Built by Infineon

The CAD models below were provided for download to Ultra Librarian by Infineon. All CAD formats may not be available.

Symbol

Symbol preview for BTM9010EPXUMA1

Footprint

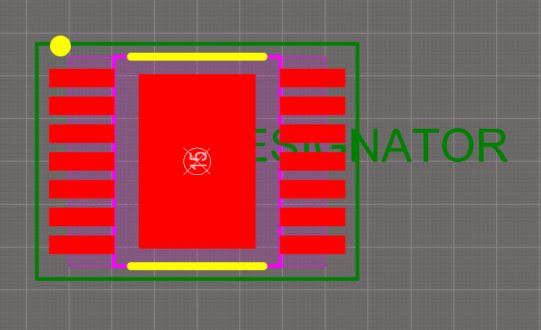

Footprint preview for BTM9010EPXUMA1
