Infineon BGAP3D30HE6327XUMA1

The BGA P3D30H is a 3.1 to 4.2 GHz mid-band SiGe RF driver amplifier optimized for 5G massive MIMO base stations and small cells. It provides a high OP1dB of 31 dBm and features single-ended, internally matched 50 Ω in-/output. With high linearity, gain flatness of <0.35 dB, and excellent RF performance can serve as a pre-driver or power amplifier. This device is suited for improving linearization in driven power amplifiers for low-power applications.
Built by Infineon

The CAD models below were provided for download to Ultra Librarian by Infineon. All CAD formats may not be available.

Symbol

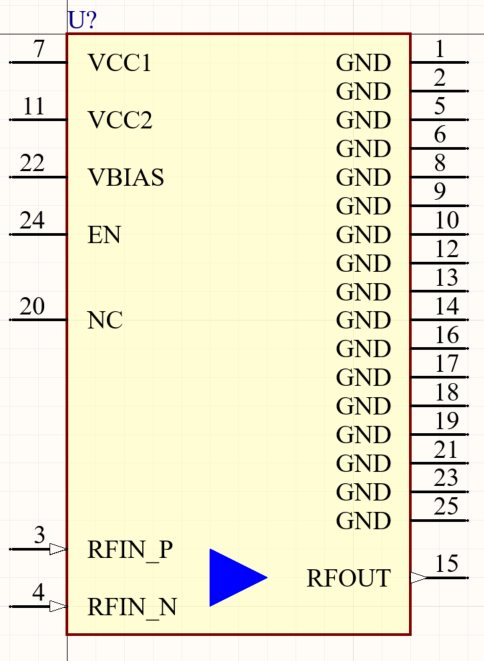

Symbol preview for BGAP3D30HE6327XUMA1

Footprint

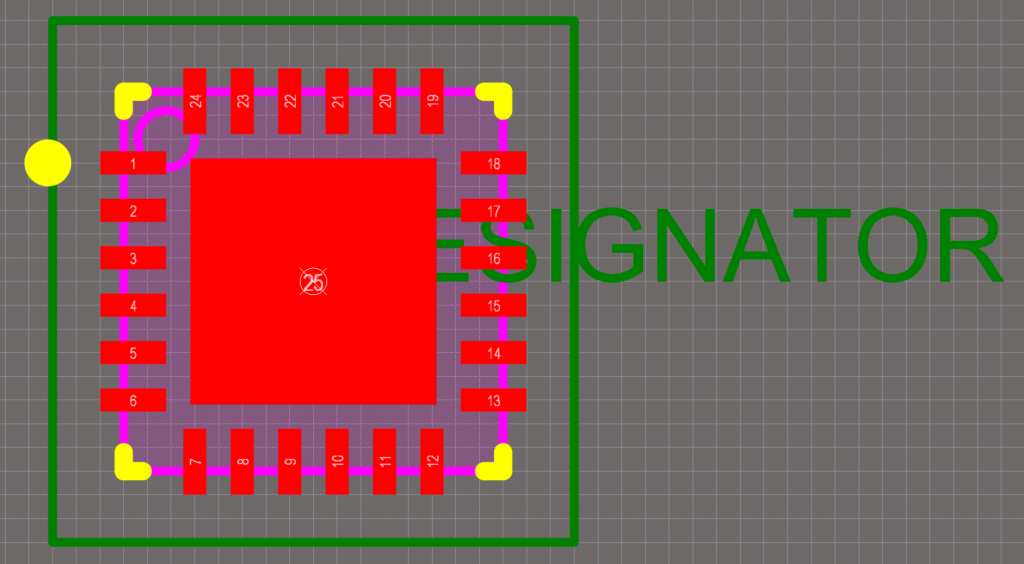

Footprint preview for BGAP3D30HE6327XUMA1

3D Model

No 3D Model Available

Additional Info
Datasheets
Pricing & Availability
Tech Specs
