Infineon 2EDB7259YXUMA1

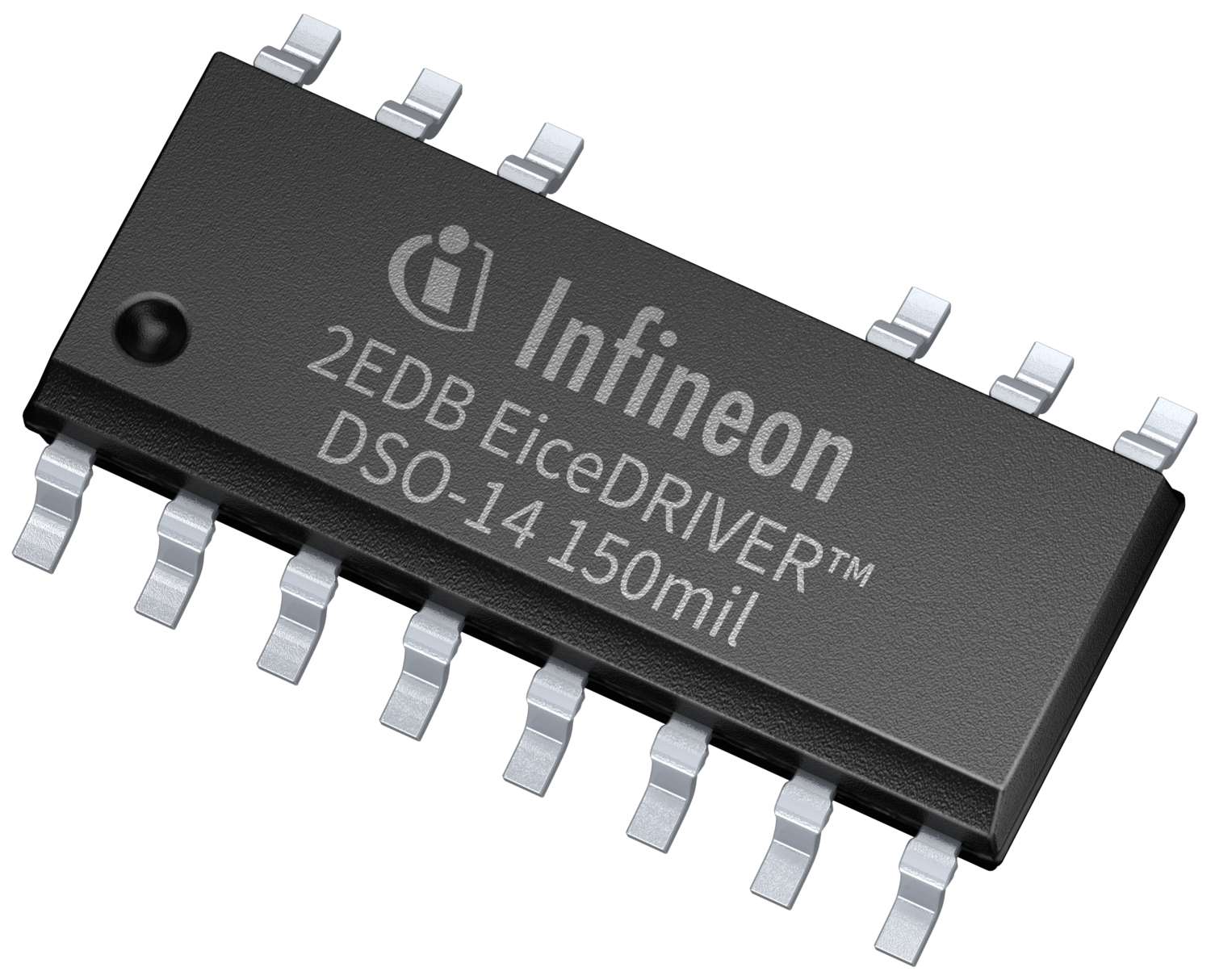

The EiceDRIVER™ 2EDB7259Y is a dual-channel isolated gate driver IC with floating outputs. The strong 5 A/9 A source/sink dual-channel gate driver comes with a very high 150 V/ns CMTI (common mode transient immunity) for robust operation with CoolMOS™, CoolGaN™ GIT HEMTs in high-power switching noise environment.The very short propagation delay of 38ns is provided with low variation over temperature and production which enables the power system design to achieve higher efficiency through very tight timing control across the safety isolation barrier. Safety certificates in accordance with UL1577 and GB4943.1 are available. 2EDB7259Y is available in a narrow-body 150mil DSO-14 package.
